※ The frame and cross beam of the FLV slotting machine are all designed with a frame structure. The working table is made of 60mm Q345 low-alloy high-strength structural steel and the frame is made of Q235 steel plate. The machine tool has good overall rigidity and durability. The bed is tempered with natural gas to eliminate welding stress and reduce equipment deformation. Sandblasting guarantees excellent paint finish.

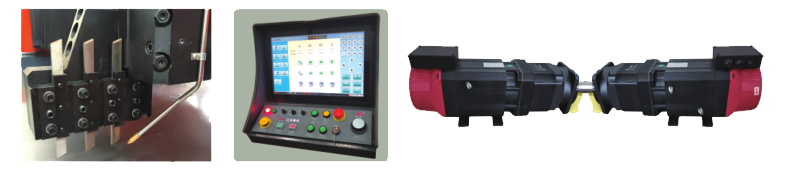

※ FLV grooving machine adopts precision copper gear and helical rack drive, supplemented by Taiwan Shangyin roller heavy-duty linear guide. The moving speed can be adjusted by frequency conversion, and the cutting process is stable and efficient. Adopt dual servo motors and dual drives as the main power to improve the stability and speed of the machine.
※ The turret transfer device of the FLV slotting machine uses SFSR silent ball screw and QH silent guide to ensure high accuracy.
※ FLV grooving machined parts are fixed by hydraulic clamping system, fast grooving speed and guaranteed strong clamping. The hydraulic system is equipped with accumulator compensation and relief valve, and the motor works in gap mode to save energy and the hydraulic system is safe. The FLV grooving machine uses four cutters to process "V" grooves, so the cutting amount is evenly distributed and the deformation of the machined part is reduced. And the optional micro cooling system can prolong the service life of the tool and reduce the production cost. The FLV grooving machine can be processed in both longitudinal and transverse directions, and has a process to achieve the "front and back" processing function of the plate.
※ The slotting machine can be completed by using only the input keyboard and processing program. According to different operators and materials, the knob can be used to adjust the processing speed, which is convenient for the operators. Can be displayed
The display screen can understand the working conditions in the process. Sensors are used to ensure the safety of operators. The alarm message appears on the display when the equipment is abnormal, which is easy to repair.
※ When using this grooving machine, only manpower is required for placing and taking out the processed parts, so labor can be saved.
※ The FLV slotting machine table has a self-repairing function. During use, customers can create their own table according to their own requirements to ensure processing accuracy.
|
Mode
|
Max.grooving width(mm) |
Max.grooving length(mm) |
Max.grooving thickness(mm) |
Min.grooving thickness(mm) |
Min.grooving distance(mm) |
m/min(max) Cutting speed |
Knife rest resolutiong(left and right) |
Cutting speed |
Knife restresolutiong |
Max.grooving distance |
Main motor power |
Pneumatic（Mpa) |
Dimensions | ||
|
Length (mm) |
Width (mm) |
Height (mm) |
|||||||||||||
|
1250x3200 |
1250 |
3200 |
<4 |
0.6 |
8 |
0-80 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
5200 |
2300 |
1600 |
|
1250x4000 |
1250 |
4000 |
<4 |
0.6 |
8 |
0-80 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
6000 |
2300 |
1600 |
|
1250x5000 |
1250 |
5000 |
<4 |
0.6 |
8 |
0-80 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
7000 |
2300 |
1600 |
|
1250x6000 |
1250 |
6000 |
<4 |
0.6 |
8 |
0-80 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
8000 |
2300 |
1600 |
|
1500x4000 |
1500 |
4000 |
<4 |
0.6 |
8 |
0-70 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
6000 |
2480 |
1600 |
|
1500x5000 |
1500 |
5000 |
<4 |
0.6 |
8 |
0-70 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
8000 |
2480 |
1600 |
|
1500x6000 |
1500 |
6000 |
<4 |
0.6 |
8 |
0-70 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
8000 |
2480 |
1600 |
|
Single servo drive |
|
|
|
|
1.5mmunder |
|
|
|
|
|
|
|
|
|
|
|
1250x3200 |
1250 |
3200 |
<5 |
0.6 |
6 |
0-110 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
5200 |
2300 |
1600 |
|
1250x4000 |
1250 |
4000 |
<5 |
0.6 |
6 |
0-110 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
6000 |
2300 |
1600 |
|
1250x5000 |
1250 |
5000 |
<5 |
0.6 |
6 |
0-110 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
7000 |
2300 |
1600 |
|
1250x6000 |
1250 |
6000 |
<5 |
0.6 |
6 |
0-110 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
8000 |
2300 |
1600 |
|
1500x4000 |
1500 |
4000 |
<5 |
0.6 |
6 |
0-100 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
6000 |
2480 |
1600 |
|
1500x5000 |
1500 |
5000 |
<5 |
0.6 |
6 |
0-100 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
8000 |
2480 |
1600 |
|
1500x6000 |
1500 |
6000 |
<5 |
0.6 |
6 |
0-100 |
±0.01 |
0-20 |
±0.01 |
50 |
5.5 |
6——8 |
8000 |
2480 |
1600 |
|
Double servo drive |
|
|
|
|
1.5mmunder |
|
|
|
|
|
|
|
|
|
|
|
1250x3200 |
1250 |
3200 |
<6 |
0.6 |
6 |
0-120 |
±0.01 |
0-20 |
±0.01 |
50 |
3x2 |
6——8 |
5200 |
2300 |
1600 |
|
1250x4000 |
1250 |
4000 |
<6 |
0.6 |
6 |
0-120 |
±0.01 |
0-20 |
±0.01 |
50 |
3x2 |
6——8 |
6000 |
2300 |
1600 |
|
1250x5000 |
1250 |
5000 |
<6 |
0.6 |
6 |
0-120 |
±0.01 |
0-20 |
±0.01 |
50 |
3x2 |
6——8 |
7000 |
2300 |
1600 |
|
1250x6000 |
1250 |
6000 |
<6 |
0.6 |
6 |
0-120 |
±0.01 |
0-20 |
±0.01 |
50 |
3x2 |
6——8 |
8000 |
2300 |
1600 |
|
1500x4000 |
1500 |
4000 |
<6 |
0.6 |
6 |
0-110 |
±0.01 |
0-20 |
±0.01 |
50 |
3x2 |
6——8 |
6000 |
2480 |
1600 |
|
1500x5000 |
1500 |
5000 |
<6 |
0.6 |
6 |
0-110 |
±0.01 |
0-20 |
±0.01 |
50 |
3x2 |
6——8 |
8000 |
2480 |
1600 |
|
1500x6000 |
1500 |
6000 |
<6 |
0.6 |
6 |
0-110 |
±0.01 |
0-20 |
±0.01 |
50 |
3x2 |
6——8 |
8000 |
2480 |
1600 |
